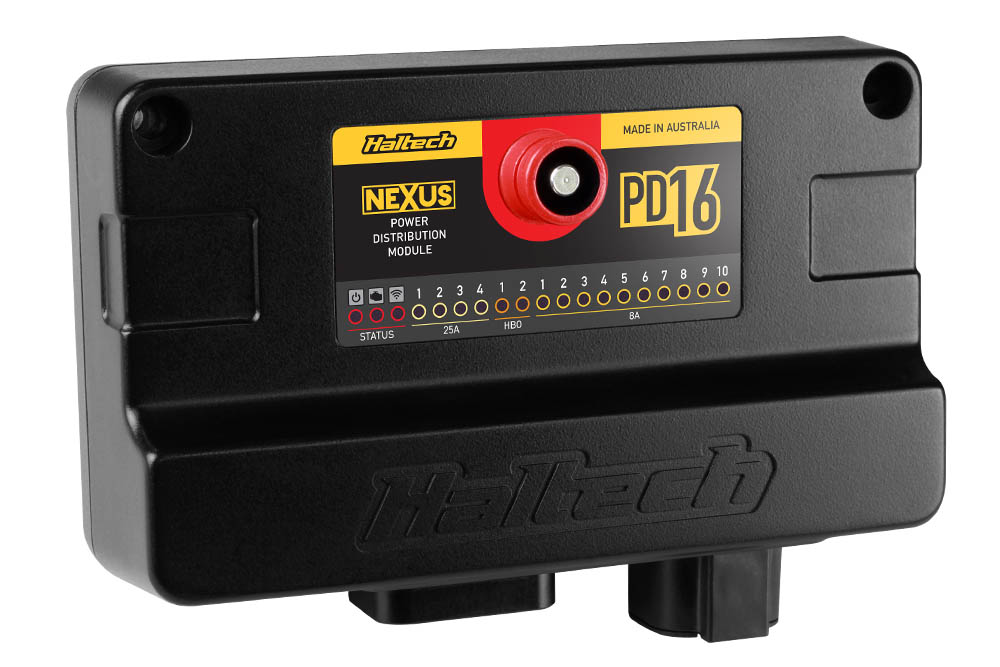

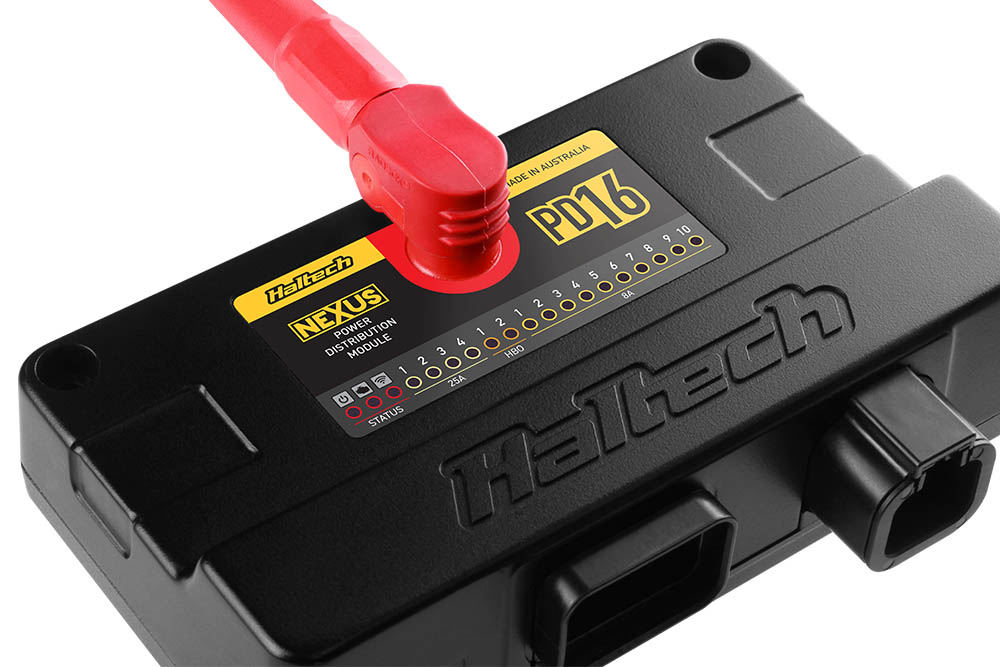

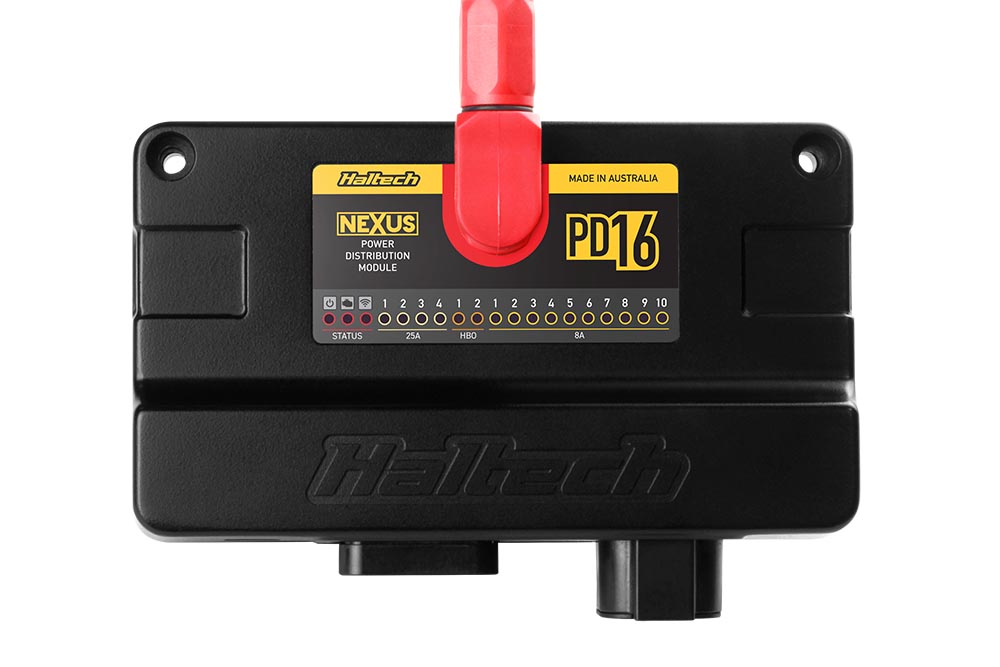

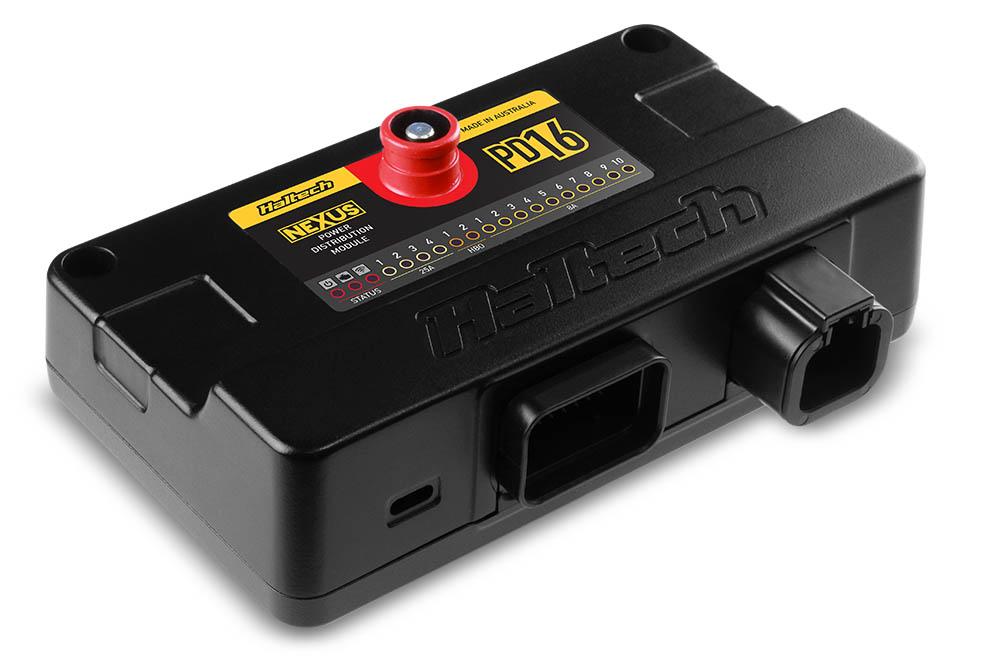

PD16 PDM

Description

Includes: 1 x Haltech PD16, 1 x SurLok 120A Connector Red, 1 x USB Key, 1 x USB-C Cable, 1 x USB-C Dust Cap, 1 x Haltech Fabric Keytag, 1 x Quick Start Guide Booklet, Mounting Hardware – (2 x M5 Bolts and Nuts)

Suits: Compatible with Haltech Elite and Nexus ECUs ONLY Does not function as a stand-alone PDM.

Notes: The NEXUS PD16 is Haltech’s new power distribution product. Boasting new, innovative yet user-friendly technology, it sets a new market standard for power distribution systems. Designed to integrate seemlessly into your existing Haltech Elite or Nexus engine management system, the PD16 delivers safe, dependable power delivery to your vehicle.

IMPORTANT EMISSIONS NOTICE:
In many states, it is unlawful to tamper with your vehicle’s emissions equipment. Haltech products are designed and sold for sanctioned off-road/competition non-emissions controlled vehicles only and may never be used on a public road or highway. Using Haltech products for street/road use on public roads or highways is prohibited by law unless a specific regulatory exemption exists (more information can be found on the SEMA Action Network website www.semasan.com/emissions for state by state details in the USA). It is the responsibility of the installer and/or user of this product to ensure compliance with all applicable local and federal laws and regulations. Please check with your local vehicle authority before purchasing, using or installing any Haltech product.

OVERVIEW:

The NEXUS PD16 is Haltech’s new power distribution product. Boasting new, innovative yet user-friendly technology, it sets a new market standard for power distribution systems. Designed to integrate seemlessly into your existing Haltech Elite or Nexus engine management system, the PD16 ensures safe, dependable power delivery to your vehicle. * Compatible with Haltech Elite and Nexus ECUs ONLY Does not function as a stand-alone PDM.

FEATURES:

• 10 x High Side Outputs
• 2 x Half Bridge Outputs
• 4 x 25A High Current Outputs
• 8 x Inputs + Dedicated Ignition Switch Input
• Power for Ignition Switch
• Integrated into Haltech CAN Bus Network
• 5V Sensor Supply / Sensor Ground
• 120A SurLok Connector

RECOURCES:

PD16_WiringDiagram

Nexus PD16_QuickStart Guide
