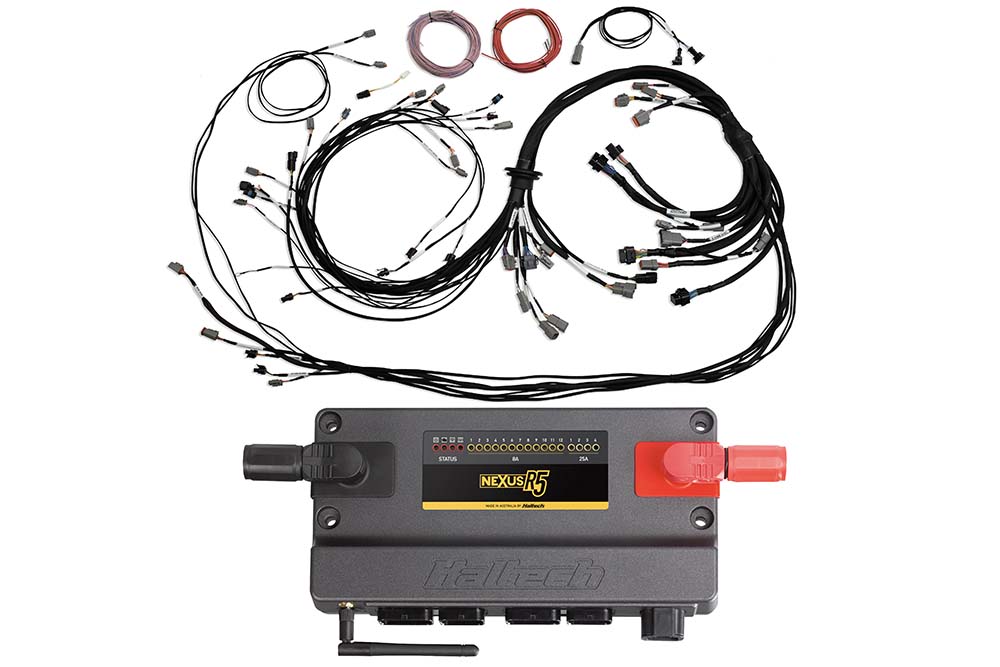

Nexus R5 VCU + Universal V8 Terminated Harness

Description

Nexus R5 VCU + Universal V8 Terminated Harness

Includes: 1 x HT-195000 – Nexus R5 ECU 1 x HT-186200 – Universal V8 Terminated Harness

Notes: Does not include , Ignition , injection and alternator adaptor harnesses sold separately

IMPORTANT EMISSIONS NOTICE:
In many states, it is unlawful to tamper with your vehicle’s emissions equipment. Haltech products are designed and sold for sanctioned off-road/competition non-emissions controlled vehicles only and may never be used on a public road or highway. Using Haltech products for street/road use on public roads or highways is prohibited by law unless a specific regulatory exemption exists (more information can be found on the SEMA Action Network website www.semasan.com/emissions for state by state details in the USA). It is the responsibility of the installer and/or user of this product to ensure compliance with all applicable local and federal laws and regulations. Please check with your local vehicle authority before purchasing, using or installing any Haltech product.

OVERVIEW:

• Injector breakouts
• HT-186000 V8 Primary Injector EV1
• HT-186001 V8 Secondary Injector EV1
• HT-186002 V8 Primary Injector USCAR
• HT-186003 V8 Secondary Injector USCAR
• Ignition breakouts

• HT-186060 Nexus V8 GM/Chrysler IGN1A
• HT-186061 Nexus V8 Ford IGN1A
• Alternator breakouts
• HT-186123 GM LS 2-Pin Bosch Alternator Harness
• HT-186124 GM LS 4-Pin Delco Alternator Harness
• HT-186125 GM LS 2-Pin Yazaki Alternator Harness

• 4 x 25A (continuous) push-pull PWM capable (5 kHz) outputs (for power to injectors / coils, transbrake, thermofan, fuel pump)
• 12 x 8A (continuous) high side outputs (low speed PWM, 200 Hz) outputs (power to sensors, NOS solenoids, etc)
• 18 x peak/hold injector drivers (can be used as low side drive outputs)
• 12 x low current ignition outputs (can be used as low side drive outputs)
• 8 x low side drive outputs, PWM capable (DPOs)
• 4 x push-pull / h-bridge outputs (8A, PWM capable), eg for electronic throttle

• 23 x 0-5V analog inputs with redunancy for electronic throttle and switchable 5V pullup
• Trigger and home inputs with differential inputs, adjustable thresholds and glitch filters
• 10 x synchronous pulsed inputs, zero crossing or adjustable thresholds – cam sensor inputs, frequency inputs or 0-5V analog inputs
• 2 x onboard wideband controllers, supporting NTK and LSU4.9
• 3 x CAN ports with switchable termination

FEATURES:

• Haltech Nexus R5 VCU connectors
• Terminated engine bay and in-cabin connections
• Connection to Haltech CAN devices (eg dash displays, keypads, etc.)
• Connection to sensors (eg crank, cam, MAP, temperature, pressure, position, speed, flex fuel)
• Dual Wideband Lambda sensor allocation
• Breakout connection to 8 ignition coils
• Breakout connection to 8 primary injectors,
• 8 secondary injectors and 2 tertiary injectors
• Breakout connection for alternator control
• Starter solenoid control
• Dual boost control solenoid allocation
• Breakout connection for thermofan and fuel pump control
• Breakout connection for transmission control
• Spare inputs and outputs
• Spare high current 8 Amp PDM outputs
• Spare HBO (Half Bridge Output)

• Controlled via NSP (Nexus Software Programmer)
• Long Term Learning
• Stepper Motor Control
• 4D Closed Loop Boost Control
• Closed Loop CO2 Control
• Rotational Idle
• Launch Control
• Traction Control
• Anti-Lag
• Dual Knock Control
• Trans Brake Control
• Race Timer
• Multi Stage Fuel Injection
• Multi-level Engine Protection
• 6 Stage Nitrous Control
• 4-sensor variable cam control
• Intake Air Bleed Control
• Flat Shift Control
• Shock Travel & Ride Height Control
• Advanced Torque Management
• On-board Wi-Fi

• Ford AODE/4R70W
• GM 4L60E
• GM 4L80E
• Toyota A340E
• Lenco
• Liberty

RESOURCES:

HT-186200_QuickStart Guide_Universal-V8-Nexus R5_ – Copy

Nexus R5 Wiring Diagram v2.1
