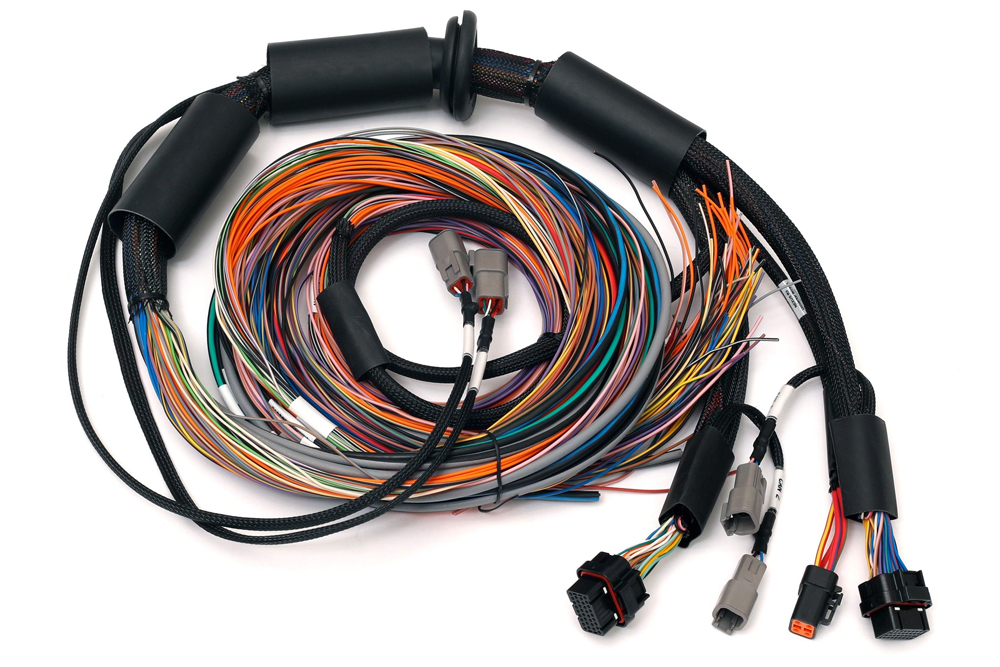

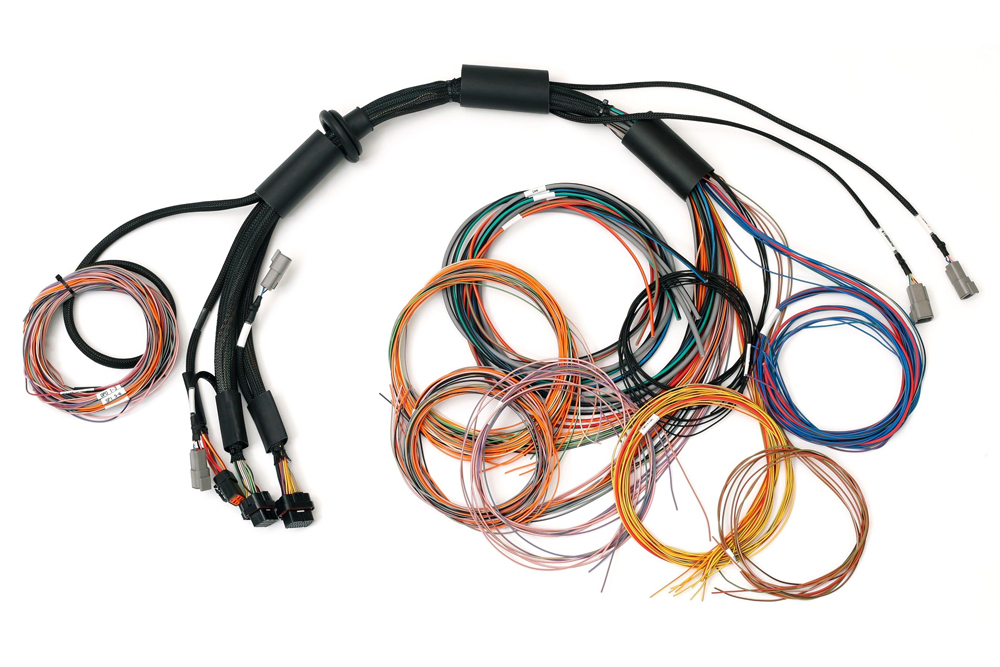

Nexus R3 Universal Wire-in Harness – 2.5m (8′)

Description

Suits: Nexus R3

Includes: 3 x Main ECU connectors 3 x CAN Connectors 1 x Wideband Connector 1 x Firewall Grommet Fully populated with TXL wire

IMPORTANT EMISSIONS NOTICE:
In many states, it is unlawful to tamper with your vehicle’s emissions equipment. Haltech products are designed and sold for sanctioned off-road/competition non-emissions controlled vehicles only and may never be used on a public road or highway. Using Haltech products for street/road use on public roads or highways is prohibited by law unless a specific regulatory exemption exists (more information can be found on the SEMA Action Network website www.semasan.com/emissions for state by state details in the USA). It is the responsibility of the installer and/or user of this product to ensure compliance with all applicable local and federal laws and regulations. Please check with your local vehicle authority before purchasing, using or installing any Haltech product.

OVERVIEW:

• Colour coded and labelled wires that match the detailed wiring diagram for a confusion free construction process.

• The wiring diagram is accompanied by the full VCU manual and Software located on the USB key provided with the VCU, or downloadable from the Haltech Website.

RESOURCES:

HT-183200_Quickstart Guide

HT-183200_Wiring Diagram
