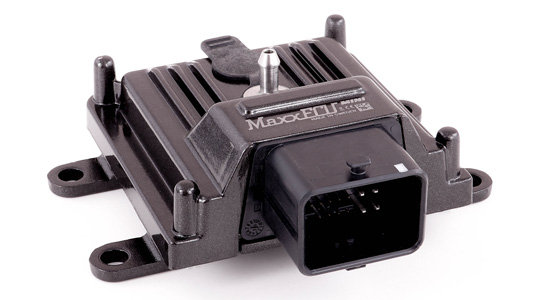

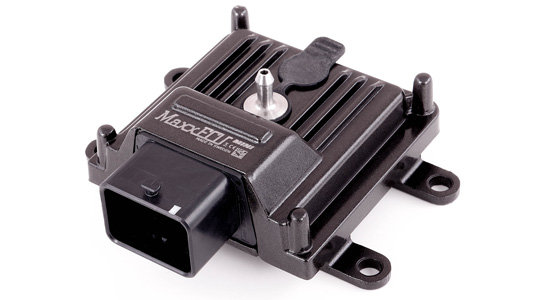

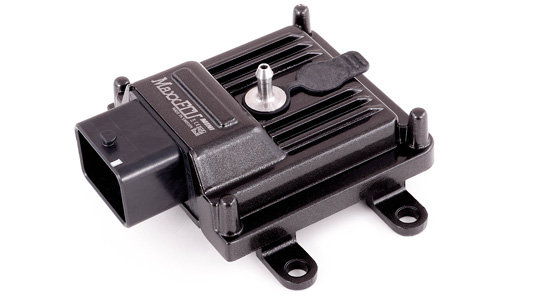

MaxxECU MINI

$691.00 – $745.00

MaxxECU MINI Tiny Potent and packed full of features. The ECU that fits in the palm of your hand.

SKU: N/A Categories: , Tags: , ,

Description

  • Advanced entry-level engine control system for up to 4 sequential cylinders. Up to 8 in wasted spark.
  • Faster and easier tuning with the built-in MAP-sensor up to 3 bar / 43.5 psi of boost.
  • Get started faster with the easy-to-use MTune PC-software

Selected features

  • Waterproofed aluminium case
  • Boost control (triple stage)
  • Traction control
  • Internal loggings
  • Shift-cut and launch
  • Advanced warning system
  • Launch control
  • Built-in MAP-sensor
  • 4 injector outputs (high impedance)
  • 4 ignition outputs
  • 4 extra outputs (GPO)
  • 2 extra analog inputs (0-5V)
  • 2 extra digital inputs (HALL)
  • CAN bus

Target engines for MaxxECU MINI

  • All 1-4, 6 and 8 cylinder engines
  • Up to 4 cylinders fully sequentially (using a digital input as HOME)
  • Up to 8 cylinders in wasted spark

MaxxECU MINI inputs

  • Intake air temperature sensor (IAT)
  • Coolant temperature sensor (CLT)
  • Throttle position sensor (TPS)
  • 1 trigger input (VR/HALL). Automatic trigger level detection
  • 2 digital inputs used for example for speed sensors (Hall) or switches
  • 2 extra 0-5V inputs. Can be used for additional sensors such as for measurement of fuel/oil pressure
  • Built-in 400kPa MAP-sensor for up to 3bar/43PSI of boost

MaxxECU MINI outputs

  • 4 injectors outputs. High impedance only
  • 4 ignition outputs. 5V signal to drive ignition modules, CDI units or coils
  • 4 outputs for extra features. Can be used to control virtually anything. Fuel pumps, idle control, boost solenoids, nitrous, shift lights, fans, warning lights, etc. GPO 1-3 (2A), GPO 8 (2A)

MaxxECU MINI technical

  • CAN bus for expansion modules, OEM vehicle CAN, ODBII
  • USB communication for tuning with MTune
  • 8MB memory for internal logging, up to 1000Hz
  • Supply voltage 8-22V
  • ARM Cortex-M3 120MHz main processor
  • Resolution on ignition: 0.1 degrees
  • Resolution on injectors: 0.001 ms
  • Updates the fuel and ignition calculations 2000 times per second
  • The fastest PC communication on the market
  • 85x120x43mm excluding protruding connectors
  • Weight: 245g (ECU only)
  • Waterproofed aluminium case

MaxxECU M-Tune Features

MTune tuning features

  • 2D and 3D
  • Shortcuts for most operations
  • Interpolation
  • Local autotune
  • Live-logger
  • Superfast USB connection
  • Live tuning – No need to burn changes – instant save

MaxxECU trigger support

  • VR-sensor or digital (Hall, opto)
  • Distributor
  • Standard missing tooth (60-2, 36-1). Supports ranges from 2-1 to 180-4
  • Missing tooth on CAM
  • Multitooth trigger (2+1 to 180+1)
  • Audi 5-cyl
  • Chrystler Hemi SRT-8 32-2-2
  • Diahatsu Mira 3-cyl (3+1 on cam).
  • Diahatsu Mira JB (4+1 on CAM)
  • Dodge Viper V10 (gen 1 92-95)
  • Dodge Viper V10 (gen 2 96-02)
  • GM LSx
  • GM LS 24x, any cam pattern
  • GM LT5 gen I (8+1 on crank)
  • Harley davidson EVO
  • Honda K20 (12+1)
  • Honda K20A2 (with CAM sensor)
  • Honda K20Z4 12+1 crank with 4+1 cam trigger
  • Jeep Cherokee (MJ-XJ 19)
  • Kawasaki JET SKI 1100 DI STX
  • Mazda 1.6 MX5/Miata/Eunos
  • Mazda MX5 NB (99-05)
  • Mazda RX8, 2 (Z engines) 36-2-2-2
  • Mitsubishi 4/2
  • Mitsubishi EVO X
  • Nissan CAS
  • Nissan HR16DE
  • Nissan VQ35DE
  • Renix 44-2-2
  • Renix 66-2-2-2
  • Rover V8 (8+1 on crank)
  • Rover K-series (lotus elise) 1.8
  • Single pulse per 720 degrees (piggyback trigger)
  • Subaru EJ20 (early) 6crank+7cam teeth
  • Subaru EJ20 (late) 36 teeth
  • Suzuki 13B (requires modified trigger wheel)
  • Suzuki G16B (ON CAM)
  • Suzuki GSX (with digital sensor)
  • Suzuki Swift 2012 – 2017 K12B
  • Suzuki Swift M15A 2005 – 2010
  • Yamaha jet ski waverunner (2010)

MaxxECU CAM signal support

  • On Cam (1 pulse per cam rev.)
  • 2JZ 3-teeth 7 VTTi
  • N-1 on cam (missing tooth)
  • Alfa Romeo Twin Spark 95 – 05
  • AMG C63 V8
  • BMW 6+1 extra (S50)
  • BMW M62 (rising)
  • Chrystler Hemi SRT-8
  • Ford Duratec (CAM)
  • Ford Mustang 5.0 Coyote
  • Honda CBR1000RR (2+1)
  • Honda K20A2
  • Honda F20C
  • Honda J35A3
  • Honda L15A
  • GM LS3
  • MAP sensor as sync on ITB
  • MAP sensor as sync on V-Twin
  • Mazda MX5 NB cam trigger with missing tooth
  • Mazda MX5 NC
  • Mazda 2 (Z engines)
  • Mitsubishi Evo cam
  • Nissan VQ35DE
  • Nissan HR16DE
  • Nissan VK45DE
  • Porsche 996 2001-2005 M96/70
  • Suzuki swift 2012-2017 K12B
  • Suzuki Swift M15A 2005 – 2010
  • Toyota 1GR-FE/3UR-FE
  • Toyota 2NR
  • Volvo T5/T6
  • Volvo B5244S
  • VW 1.8T (CAM)

MaxxECU engine protections

  • EGT fuel correction
  • Lean power cut
  • EGT power cut
  • Rev limit
  • Advanced warning and protection system
  • Lambda fuel correction

MaxxECU auto transmission support

  • 4L80E/4L85E
  • 4L60E/4L65E

MaxxECU functionality

  • Launch control (up to three stages)
  • Rolling launch
  • Anti-lag using solenoid or E-Throttle
  • Traction control
  • Power management
  • Shift-cut
  • Overrun fuel cut
  • Lambda control (closed loop)
  • Nitrous control
  • AC control
  • Boost control (closed/open loop), extra compensation tables.
  • Boost level switching
  • E-Throttle support
  • VANOS/VVTi support
  • Logging: Internal up to 1000Hz, PC logging 20Hz
  • Built-in error diagnostics and handling
  • Idle control using E-Throttle, idle solenoid, stepper motor or ignition timing
  • Closed loop anti-stall
  • Ignition timing lock for easy synchronization with timing light
  • Flex fuel

MaxxECU advanced features

  • Speed limiters
  • Individual fuel correction per cylinder
  • Injector staging
  • Virtual fuel tank/fuel consumption
  • Filters on TPS, RPM and MAP signals
  • Trailing ignition
  • Virtual inputs/internal outputs to activate internal functions
  • Use of TYPE-K sensor to report IAT up to 350 degree C/660 F
  • Wastegate control with CO2 for predictable boost
  • Extra user table activation based on user defined settings
  • After launch power limit, function to control traction after launch
  •
  • Automatic starting and stopping of internal log function based on user conditions (speed, load, error code etc.)
  • Timers and distance counters
  • CAN for OEM protocols, OBDII, and CAN modules
  • Clutch slip control with user defined tables (as an example)
  • Measure injector resistance directly from software
  • Built-in trigger oscilloscope
  • Built-in trigger logger
  • Flexible load/speed axis selection
  • Flexible user output functions
  • Flexible user PWM/FREQ output functions
  • Speedometer output function
  • Tachometer output selectable 5/12V, supports external flyback coil
  • Sequential gearbox control

MaxxECU VANOS/VVTi support

  • Even teeth
  • Alfa Romeo Twin Spark 95 – 05
  • AMG C63 V8
  • BMW 6+1 extra (S50)
  • BMW M62 (rising)
  • Ford Duratec (CAM)
  • Ford Mustang 5.0 Coyote
  • Honda K20A2
  • GM LS3
  • N-1 on cam (missing tooth)
  • Nissan VQ35DE
  • Nissan HR16DE
  • Nissan VK45DE
  • Volvo T5/T6
  • Mazda MX5 NB cam trigger with missing tooth
  • Mazda MX5 NC
  • Mitsubishi EVO (MIVEC)
  • Suzuki swift 2012-2017 K12B
  • Suzuki Swift M15A 2005 – 2010
  • Toyota 1GR-FE/3UR-FE
  • Volvo T5/T6
  • Volvo B5244S
  • VW 1.8T (CAM)
  • Porsche 996 2001-2005 M96/70

Additional information

Weight 5 lbs
Dimensions 12 × 10 × 3 in
Package

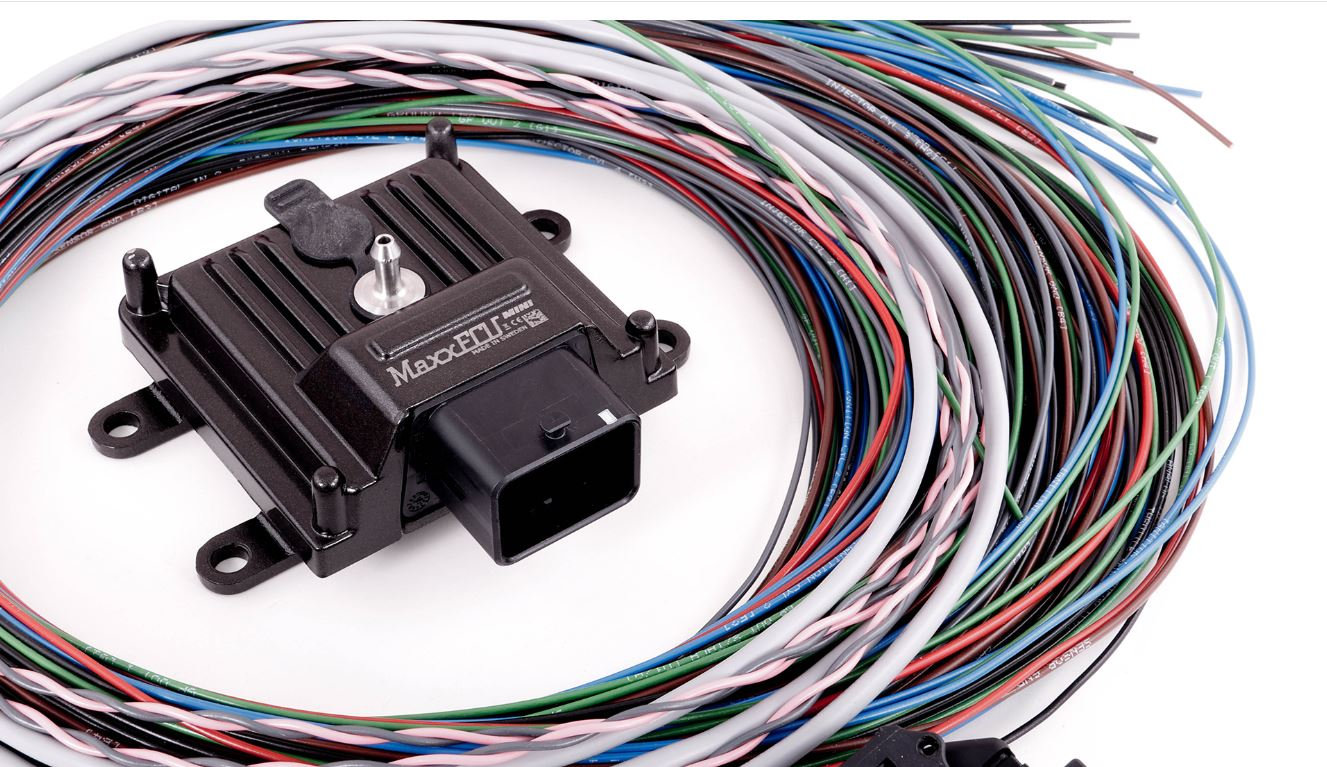

ECU Only, ECU STANDARD w/Harness & Accessories, ECU BASIC w/Connectors & Accessories
