ECUMaster Wheel Speed to CAN module
$399.00
Description
The Wheel Speed To CAN device is designed to measure frequency-type signals from 4 separate sensors and send that data over CAN BUS. The module can measure signals from different types of sensors, or standard digital signals. Thanks to differential inputs and configurable pull up/down resistors, sensors can be connected directly to the device or parallel to a working ABS system.
The Wheel Speed to CAN device must be programmed using a CAN interface. The ECUMaster USB to CAN, Kvaser, or Peak PCAN may be used.

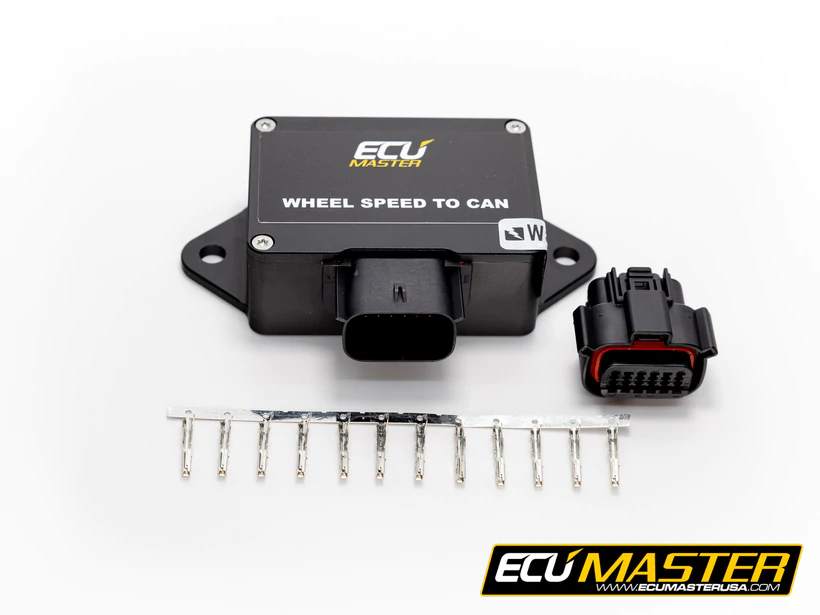

What’s in the box?
- Wheel Speed to CAN Module
- 12 Position connector with terminals
Additional information
| Weight | 1 lbs |
|---|---|

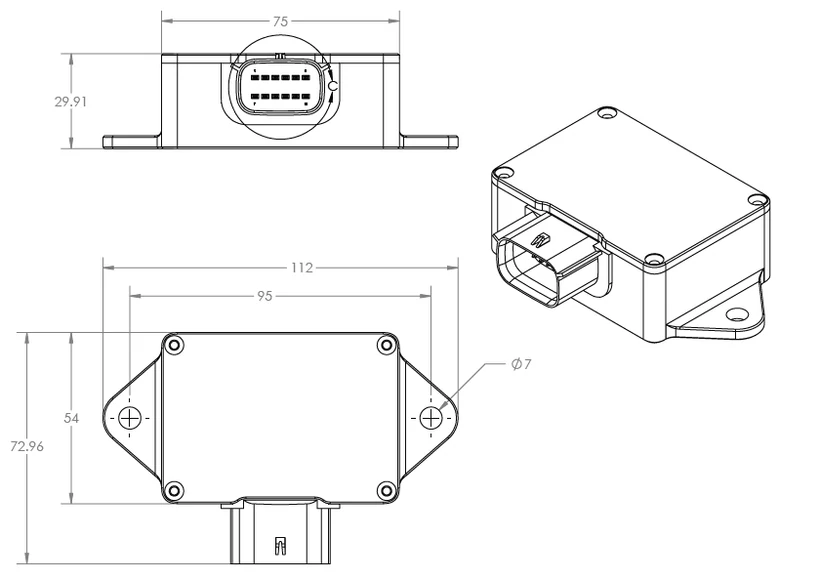

| Dimensions | 6 × 5 × 1 in |
