607 Series E85 Pump Surge Tanks

$750.06 – $1,100.61

SKU: N/A Category:

Description

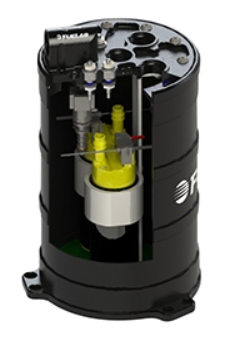

FUELAB Fuel Surge Tank Systems are designed to prevent fuel starvation due to fuel sloshing or limited tank baffling. Particularly suitable for vehicle racing such as Autocross, drifting or off-road use where fast changes in G-forces can allow air to be picked up by the main fuel pump. Fuel Surge Tank Systems maintain a small amount of fuel to operate its own internal fuel pump(s) that can supply high fuel flow rates, while only needing a relatively low fuel flow rate from the main fuel tank pump. Matched with our E85 compatible 494 Series 340lph pumps, this combination provides enough flow for up to 1000 whp on E85.

Surge Tank Options:

  • 2.1L (0.55gal) 235mm (9.25″) Tall
  • 2.7L (0.76fal) 290mm (11.41″) Tall
  • Single 340LPH (90GPH) @ 3BAR (45PSI)
  • Dual 340LPH (180GPH) @ 3BAR (45PSI)

Product Features

  • Allows for high fuel flow output with little or no modifications to the OE fuel tank and module
  • Prevents fuel sloshing by maintaining a ready volume of fuel
  • Single or dual 340 LPH internal fuel pump
  • Billet aluminum and O-ring Construction using -8AN Fuel Ports
  • Compatible with Pump and Racing Gasoline, and E85
  • Return line is required, returns excess fuel back to the vehicle fuel tank
  • Optional FST Upgrade Accessory Kits Sold Separately

607 Technical Specifications

Additional information

Weight 2.5 lbs
Dimensions 13.25 × 6 × 6 in
Tank Size

2.1L (0.55gal), 2.9L (0.76gal)
Number of Pumps

Single 340LPH (90GPH), Dual 340LPH (180GPH)
