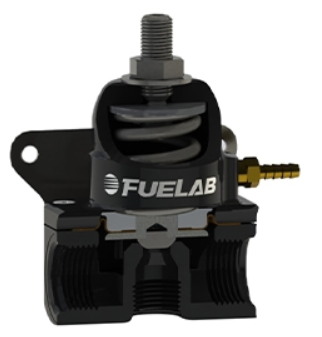

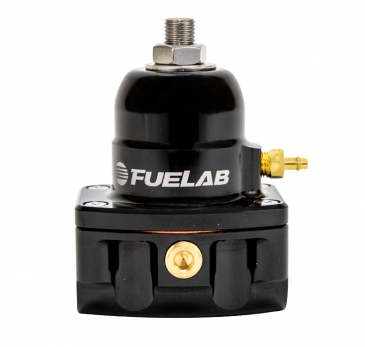

595 Series Ultra-Light Bypass Fuel Pressure Regulator
$215.51
Description
FUELAB® New Ultralight 595 Series Adjustable Fuel Pressure Regulators bring the latest in design features, versatility and performance you’ve come to expect. 30% lighter than our standard size 515 and 525 Series regulators, they offer low pressure options of 1-3psi all the way up to 125psi. Features dual -8AN Inlets and a -6AN return.
8AN Inlets / Standard Seat / EFI (25-90 PSID) or CARB (4-12PSID)
Regulator Features
- Weighs 30% less than our 515/525 Series
- New design features that stand out
- Two -8AN inlet ports and one -6AN return port
- Gasoline, diesel, methanol, and ethanol fuel compatible
- Billet Aluminum with anodize per military MIL-A-8625, Type II
- Fine thread pitch for precise pressure adjustment
- Versatile mounting bracket and stainless steel hardware
- 1/8” NPT gauge port with plug for external pressure gauge
- 1/16” NPT pressure reference port with barbed fitting
- Backed by a limited lifetime warranty
Available in BLACK only (Custom pressure options available upon request, please call for details)
Additional information
| Weight | 1 lbs |
|---|---|
| Dimensions | 3 × 5 × 4.75 in |
| Pressure Range | EFI (25-90PSID), CARB (4-12PSID) |
