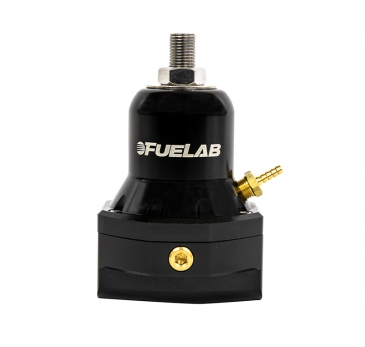

565 Series Pro Series Fuel Pressure Regulator

$391.45

SKU: N/A Category:

Description

FUELAB 565 Series Fuel Pressure Regulators have all of the same great features as our 515/525 Series except for extreme capacity. Utilizing a massive ½” return orifice and -10AN ports, this regulators hold no bounds. With a bypass capability over 5 GPM at 5 PSI, this regulator can handle blow through carbureted applications well over 1800 HP and for EFI applications using belt driven fuel pumps,  even further (with a flattened regulation slope). Regulator comes in four different pressure ranges covering applications between 4 and 80 PSI.

Select pressure range for you specific application. Note pressure range is in PSID- Pound per Square Inch Differential. Differential being the pressure ABOVE manifold pressure. Example if manifold is at 30psi boost, and regulator is set for 50PSID, actual fuel line pressure will be 80PSIG.

Regulator Features

  • Two -10AN inlet ports and one -10AN return port

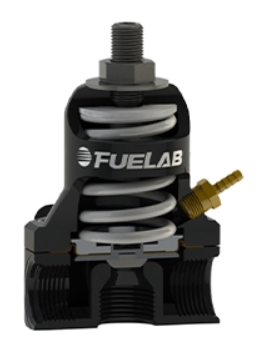

  • 1.75″ sized diaphragm with 1/2″ return orifice
  • Gasoline, diesel, methanol, and ethanol fuel compatible
  • Billet Aluminum with anodize per military MIL-A-8625, Type II
  • Fine thread pitch for precise pressure adjustment
  • Versatile mounting bracket and stainless steel hardware
  • 1/8” NPT gauge port with plug for external pressure gauge
  • 1/8” NPT pressure reference port with barbed fitting
  • Backed by a limited lifetime warranty

Available in BLACK only

Additional information

Weight 1.5 lbs
Dimensions 4 × 5 × 4.75 in
Pressure Range

EFI 25-65PSID, CARB 4-12PSID, TBI 10-25PSID, EFI 40-80PSID
