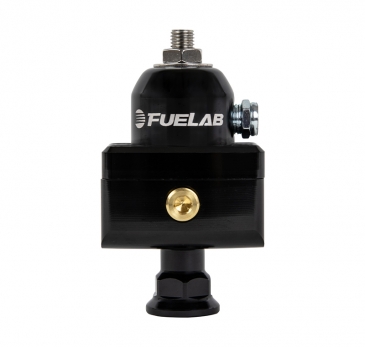

555 Series Blocking Fuel Pressure Regulator

$221.05

SKU: N/A Category:

Description

FUELAB® 555 Series Fuel Pressure Regulators are true precision instruments designed to regulate fuel. These units feature an advanced poppet design for smooth regulating capability. We’ve also incorporated a no-creep soft seat that’s methanol and E85 compatible. Adjustable from 4-12 PSI.

Choose from various pressure ranges based upon your application.

Regulator Features

  • A true precision instrument to regulate fuel
  • -8AN Inlet and outlet
  • Advanced poppet design for smooth regulating capability
  • Gasoline, diesel, methanol, and ethanol fuel compatible
  • Methanol compatibility with a No-creep soft seat
  • Billet Aluminum with anodize per military MIL-A-8625, Type II
  • Fine thread pitch for precise pressure adjustment
  • Versatile mounting bracket and stainless steel hardware
  • 1/8” NPT gauge port with plug for external pressure gauge
  • 1/8” NPT breather vent
  • Backed by a limited lifetime warranty

Also available in RED, BLUE, PURPLE, GOLD and GREEN (Call for options)

Additional information

Weight 1 lbs
Dimensions 3 × 5 × 4.75 in
Pressure range

EFI, CARB 4-12PSI, CARB 1-3PSI, TBI
