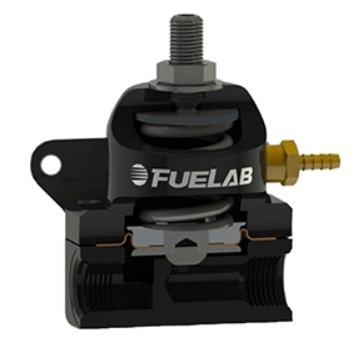

525 Series Bypass Fuel Pressure Regulators

Description

FUELAB® 525 Series Fuel Pressure Regulators are designed with performance and flexibility in mind. They accept port style and non-port style union fittings without interference. Several configurations are available, supporting carbureted applications as low as 1 PSID to fuel injected applications up to 125 PSID. The 525 Series has its return port in-line with the inlet port (not on the bottom) which allows for easy installation in extremely tight locations.

Choose from EFI or Carburetor pressure ranges and multiple inlet sizes.

Regulator Features

• Gasoline, diesel, methanol, and ethanol fuel compatible
• Billet Aluminum with anodize per military MIL-A-8625, Type II
• Fine thread pitch for precise pressure adjustment
• Versatile mounting bracket and stainless steel hardware
• 1/8” NPT gauge port with plug for external pressure gauge
• 1/8” NPT pressure reference port with barbed fitting
• Backed by a limited lifetime warranty

Also available in RED, BLUE, PURPLE, GOLD and GREEN (Please call for options)
