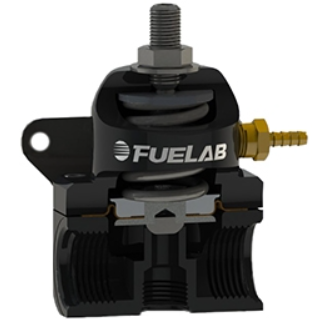

515 Series Bypass Fuel Pressure Regulators

Description

FUELAB® 515 Series Fuel Pressure Regulators are designed with performance and flexibility in mind. They accept port style and non-port style union fittings without interference. Several configurations are available, supporting carbureted applications as low as 1 PSID to fuel injected applications up to 125 PSID. The 515 Series Fuel Pressure Regulator has dual inlets, one on each side and a -6AN return port located on the bottom.

Choose from EFI or Carburetor pressure ranges and multiple inlet sizes.

Regulator Features

• Gasoline, diesel, methanol, and ethanol fuel compatible
• Billet Aluminum with anodize per military MIL-A-8625, Type II
• Fine thread pitch for precise pressure adjustment
• Versatile mounting bracket and stainless steel hardware
• 1/8” NPT gauge port with plug for external pressure gauge
• 1/8” NPT pressure reference port with barbed fitting
• Backed by a limited lifetime warranty

Also available in RED, BLUE, PURPLE, GOLD and GREEN (Please call for options)
