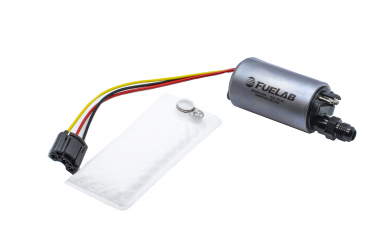

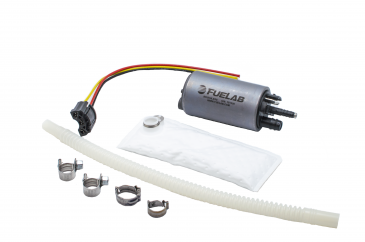

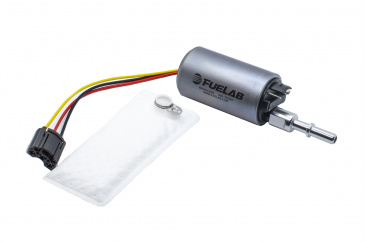

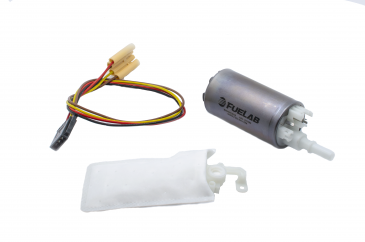

496 Series Brushless In-Tank Pumps

Description

FUELAB 496 Series brushless fuel pumps bring high flow brushless technology in a compact size into the fuel tank.  Designed for high flow, high pressure applications, these 350lph and 500lph aftermarket pumps are easily retro fitted into an OE pump module.   Offered as a stand-alone unit or in a universal install kit, these pumps make going brushless easier that ever!

EXTERNAL BRUSHLESS PUMP CONTROLLER REQUIRED

Select from 350LPH or 500LPH

Select outlet fitting style

• -6AN Male Outlet
• 5/16″ SAE quick disconnect nipple
• 3/8″ SAE quick disconnect nipple
• 9mm barb with 6mm siphon inlet
• BMW/ Audi/ Lamborghini direct replacement

  Pump Features

• Compatible with gas, E85 and Methanol
• Maximum Pressure – 8.6 Bar (125psi)
• Can be used in carbureted and EFI applications
• Each fuel pump is individually tested for performance and includes flow and current draw report
• Backed by a Limited Lifetime Warranty

Construction Features

• Comes with -6AN Outlet
• 41.5mm Diameter
• Weighs 11.5oz
• Designed for in-tank use only
• Sending Unit not included
• Comes with pre-filter and wire lead harness

For control options, check these out:

72001   Full Speed
72002   PWM Input Signal
72003   0-5v Input Signal
