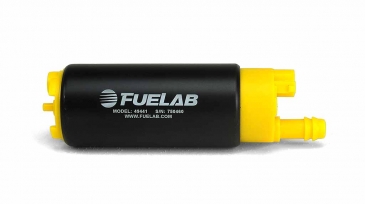

494 Series In-Tank E85 Compatible Pumps

Description

FUELAB® high flow, E85 compatible in-tank electric fuel pumps are designed for most popular EFI applications. Compact and lightweight so they’re easy to install in many existing hanger assemblies. This series of pumps is set apart for others on the market by offering superior flow for gas and E85 applications and come serialized with specific flow and current draw data for each pump we ship.

Pumps also come with rubber sleeve, end caps, pre-filters, hose, clamps and wire leads.

Pump Options

• 340LPH @ 3BAR, 13.5V (90GPH @ 45PSI)
• 300LPH @ 3BAR, 13.5V (80GPH @ 45PSI)
• Center Inlet
• Offset Inlet
• Inlet in-line w/ Outlet
• Inlet in-line w/ Outlet (GM Applications)

Pump Features

• Internal Check Valve
• Maximum Pressure – 5.9 Bar (85psi)
• Can be used in carbureted and EFI applications
• Each pump is individually tested for performance and includes flow and current draw report

Construction Features

• 80 mm body length for OE fitment, Center Inlet
• Inlet Size – 22mm for 340LPH 11mm for 300LPH and offset inlet 340lph.
• Outlet Size – 9mm (5/16”) Hose Barb
• Designed for in-tank use only
• Sending Unit not included
• Comes with rubber sleeve, end cap, pre-filter, hose, clamps and wire leads
