12mm Hall Effect Sensor

Description

Having issues with your stock crank pickup? Building a one off setup?

We have the answer! The GS100502 Cherry Hall Effect Speed Sensor.

With a 15K hz peak, it can handle just about whatever you can throw at it. Anodized red aluminum housing and a 18inch long wired connection. M12x1.00 thread full length of body. No internal pull up.

Sensor comes with wires jacketed in DR-25 and a DTM 3 Pin connector terminated on wires.

Comes with two jam nuts to secure sensor and mating DTM connector with pins.

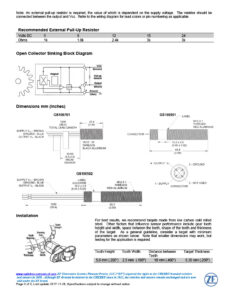

Please click here to download data sheet.
